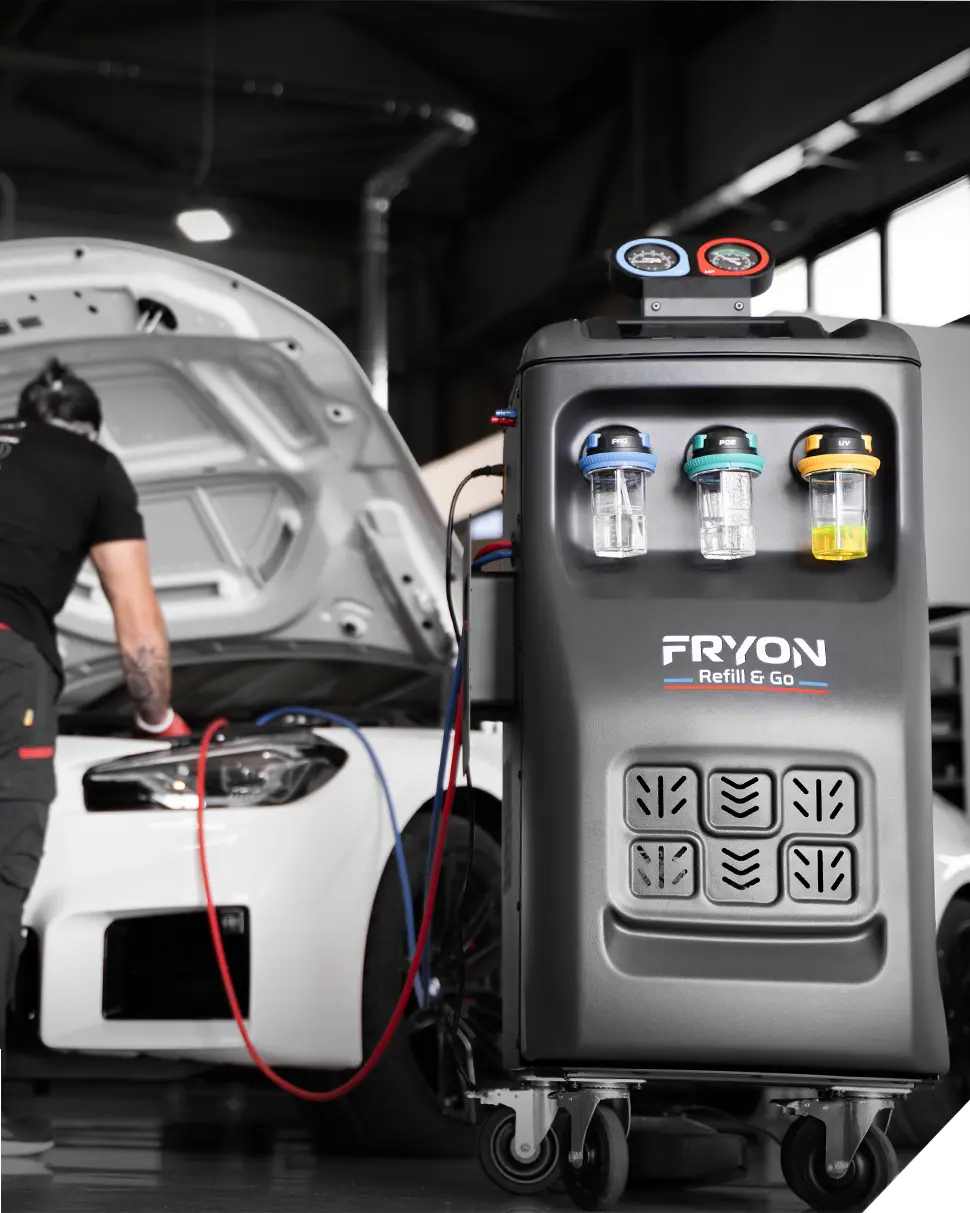

FRYON
Automatic A/C Service Units: Refill & Go
Fully automated A/C service stations for your workshop
Fryon is the new line of A/C service units created by Magicmotorsport. Every technical feature has been selected to offer a solution even for smaller businesses, while maintaining advanced functions for professional use.
Automated operations
Everything is automated with Fryon: whether you are recharging or leak testing, you can choose which action to perform manually, or simply let the machine do its work. Optimize your timings according to your needs.
Simplicity of use
From the 10’’ touch display to the easy filter drier replacement, all the components aim at one thing: facilitating your work and A/C recharging operations on both combustion and electric vehicles.
Comfort for the use
A/C is an essential comfort in scorching days of summer. Fryon is the solution: set customized timing for every operation, then recharge in just 15 seconds. Satisfied customers guaranteed.
Complete 5-phase cycle
The complete cycle consists of 5 phases: Flushing, Gas recovery, Pull a vacuum, Leak testing, Gas recharge. Set your own timings and launch the process: it’s really that simple.

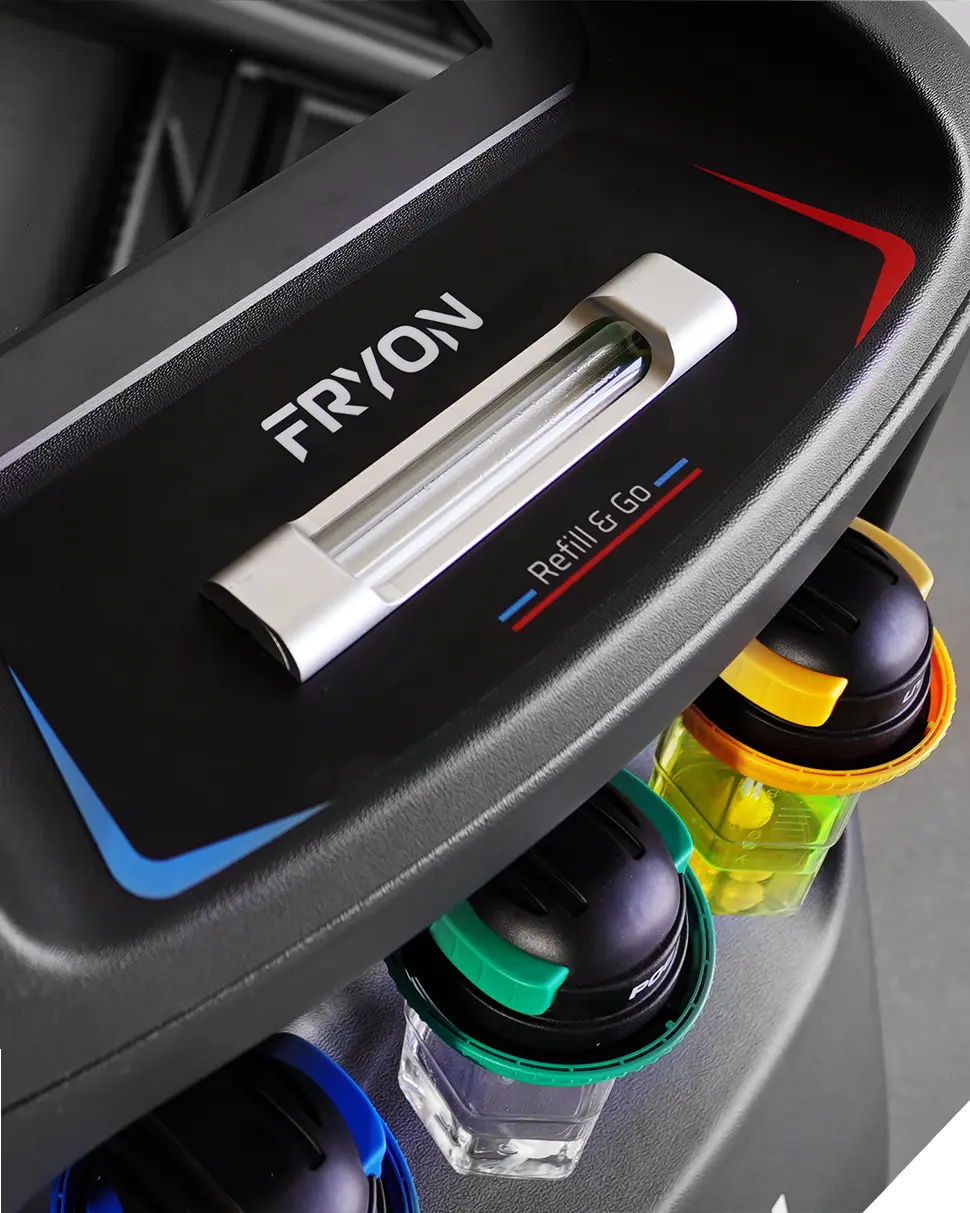

Visual inspection
The clear glass pipe on the front of the machine is made to monitor the condition of the liquid you recover from the vehicle and assess the level of contamination. Now you can recover and clean it.
Leak tests
Use the UV liquid as a marker to detect where leaks are: find weak points, make the necessary repairs, and you’re ready to go.
Flushing System
Fryon has a high-level flushing system designed to dissolve all sorts of particles and residues, for excellent cleaning results.
Easy Filter Drier Replacement
The filter drier needs to be replaced periodically, and this operation can be tricky sometimes. Fryon Prima made it simple: just unscrew the used bottle and tighten the new one.
Built-in Printer
After completing the recharge, print a paper document with the built-in printer and provide your customers with diagnostic data right away.

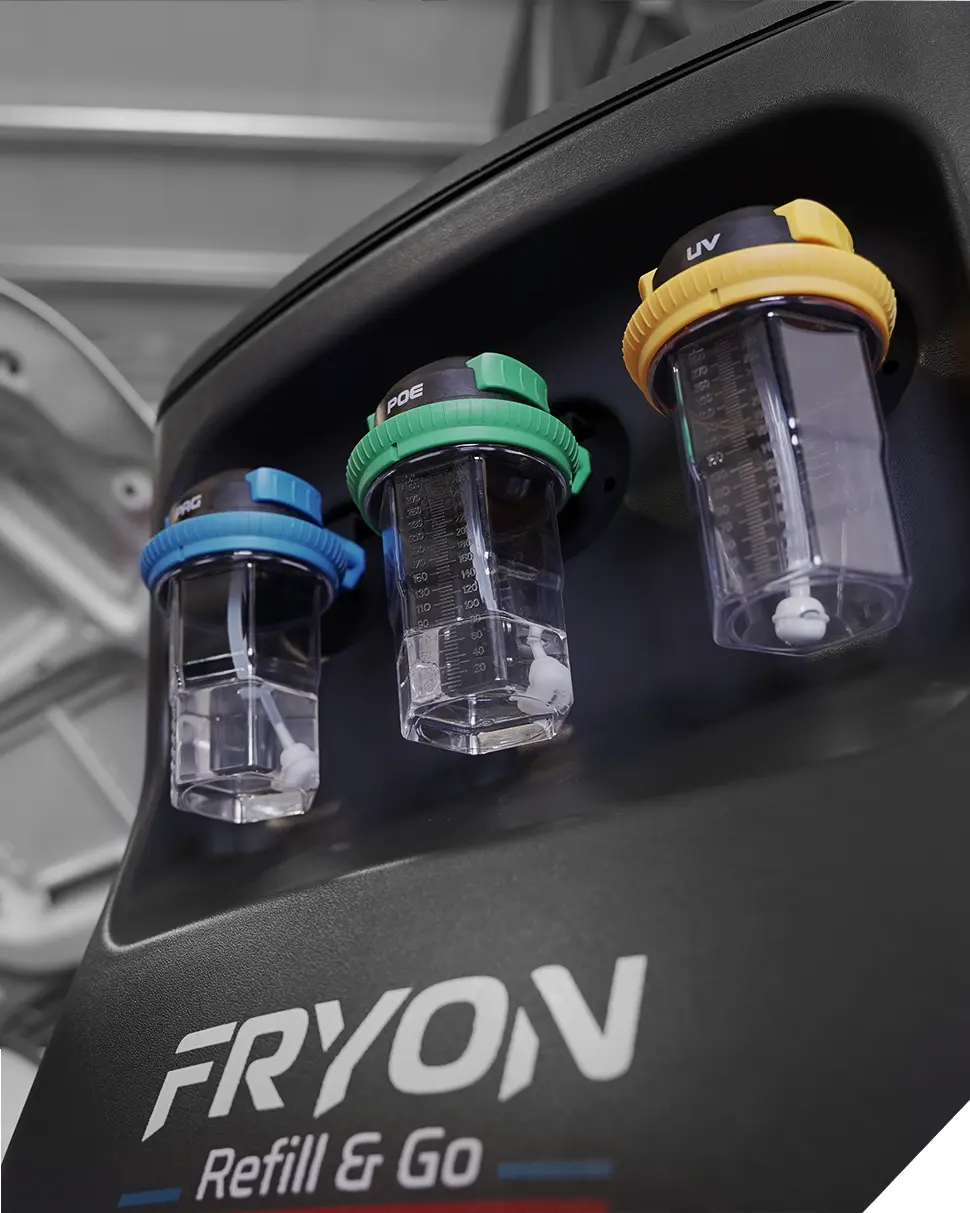

PETG bottles
4 corrosion-resistant bottles in PETG are included, extremely easy to empty/refill with PAG, POE, DRAIN, and UV liquids. Monitor their level thanks to the transparent material and the 5 digital scales that detect their volumes.
Fryon A/C Specifications
General
Special Function
Full automatic non-invasive flushing function, glass inspection system, automatic heat belt for refrigerant tank
Gases
R134A or R1234YF
Dimensions
1360 x 635 x 770 mm
Weight
1720 x 950 x 920 mm
Power supply
230 V 50/60 Hz
Temperature range
-20 -60 °C
Maximum operating pressure
20 Bar
